This is a special video plugin that displays an image as a sliding panorama. The plugin can be used with version 0.1.74 or higher.

Usage[edit]

The plugin must be loaded with an image URL. Optionally, the sliding duration and the background color of the panorama image can be indicated. Please see following action syntax example.

If you would like to use the plugin as reference to implement your own plugin, please have a look at this implementation script: http://msx.benzac.de/plugins/js/panorama.js.

Syntax[edit]

Parameter syntax of panorama plugin
Parameter Type Default Value Mandatory Description
url string null Yes

The URL of the panorama image. It is recommended to encode the value to ensure that it is evaluated correctly (e.g. "http://msx.benzac.de/media/pano1.jpg""http%3A%2F%2Fmsx.benzac.de%2Fmedia%2Fpano1.jpg").

Note: Please note that the panorama image must have an aspect ratio of more than 16:9 (e.g. 2:1) in order for the sliding effect to become visible.

duration number|string 40 No

The sliding duration of the panorama image in seconds. You can also set this parameter to "slideshow" to use the slideshow interval settings from the application (SettingsSlideshow Interval). The following interval values can be set. Please note that the panorama plugin doubles the interval values.

  • Very Fast: 2 sec
  • Fast: 10 sec
  • Normal: 20 sec
  • Slow: 40 sec
  • Very Slow: 80 sec
color string "black" No

The background color of the panorama image in CSS syntax. It is recommended to encode the value to ensure that it is evaluated correctly (e.g. "#000000""%23000000").

Example[edit]

Screenshot[edit]

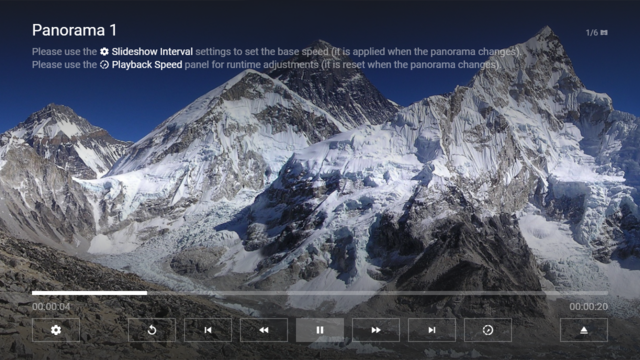

Example Screenshot (Panorama Plugin)

Code[edit]

{
    "type": "pages",
    "headline": "Panorama Plugin Test",
    "template": {
        "type": "default",
        "layout": "0,0,6,2",
        "color": "msx-glass",
        "group": "{ico:vrpano}",
        "imageFiller": "height-center",
        "properties": {
            "control:load": "silent",
            "control:type": "extended",
            "label:extension": "{ico:vrpano}",
            "button:content:action": "settings:slideshow_interval",
            "button:content:icon": "settings",
            "button:speed:enable": true,
            "info:text": "Please use the {ico:msx-white:settings} {txt:msx-white:Slideshow Interval} settings to set the base speed (it is applied when the panorama changes).{br} Please use the {ico:msx-white:slow-motion-video} {txt:msx-white:Playback Speed} panel for runtime adjustments (it is reset when the panorama changes)."
        }
    },
    "items": [{
            "titleFooter": "{col:msx-white}Panorama 1",
            "playerLabel": "Panorama 1",
            "image": "http://msx.benzac.de/media/thumbs/pano1.jpg",
            "action": "video:plugin:http://msx.benzac.de/plugins/panorama.html?url=http://msx.benzac.de/media/pano1.jpg&duration=slideshow"
        }, {
            "titleFooter": "{col:msx-white}Panorama 2",
            "playerLabel": "Panorama 2",
            "image": "http://msx.benzac.de/media/thumbs/pano2.jpg",
            "action": "video:plugin:http://msx.benzac.de/plugins/panorama.html?url=http://msx.benzac.de/media/pano2.jpg&duration=slideshow"
        }, {
            "titleFooter": "{col:msx-white}Panorama 3",
            "playerLabel": "Panorama 3",
            "image": "http://msx.benzac.de/media/thumbs/pano3.jpg",
            "action": "video:plugin:http://msx.benzac.de/plugins/panorama.html?url=http://msx.benzac.de/media/pano3.jpg&duration=slideshow"
        }, {
            "titleFooter": "{col:msx-white}Panorama 4",
            "playerLabel": "Panorama 4",
            "image": "http://msx.benzac.de/media/thumbs/pano4.jpg",
            "action": "video:plugin:http://msx.benzac.de/plugins/panorama.html?url=http://msx.benzac.de/media/pano4.jpg&duration=slideshow"
        }, {
            "titleFooter": "{col:msx-white}Panorama 5",
            "playerLabel": "Panorama 5",
            "image": "http://msx.benzac.de/media/thumbs/pano5.jpg",
            "action": "video:plugin:http://msx.benzac.de/plugins/panorama.html?url=http://msx.benzac.de/media/pano5.jpg&duration=slideshow"
        }, {
            "titleFooter": "{col:msx-white}Panorama 6",
            "playerLabel": "Panorama 6",
            "image": "http://msx.benzac.de/media/thumbs/pano6.jpg",
            "action": "video:plugin:http://msx.benzac.de/plugins/panorama.html?url=http://msx.benzac.de/media/pano6.jpg&duration=slideshow"
        }]
}
