This is not really a hidden feature, but a good-to-know information. It is possible to align, truncate, and vertically center title and/or text properties. Additionally, it is possible to bind specific content properties to the image area. All features are available from version 0.1.146. Since version 0.1.156, it is also possible to perform content separations to prevent overlapping content. Please see following example.
Example[edit]

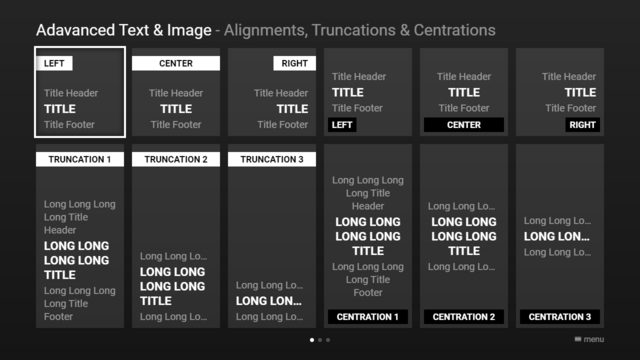

Screenshot[edit]
Code[edit]
{
"type": "pages",
"headline": "Adavanced Text & Image",
"pages": [{
"headline": "Alignments, Truncations & Centrations",
"items": [{
"badge": "Left",
"type": "default",
"layout": "0,0,2,2",
"color": "msx-glass",
"titleHeader": "Title Header",
"title": "Title",
"titleFooter": "Title Footer",
"alignment": "left|badge-left"
}, {
"badge": "Center",
"type": "default",
"layout": "2,0,2,2",
"color": "msx-glass",
"titleHeader": "Title Header",
"title": "Title",
"titleFooter": "Title Footer",
"alignment": "center|badge-center"
}, {
"badge": "Right",
"type": "default",
"layout": "4,0,2,2",
"color": "msx-glass",
"titleHeader": "Title Header",
"title": "Title",
"titleFooter": "Title Footer",
"alignment": "right|badge-right"
}, {
"stamp": "Left",
"type": "default",
"layout": "6,0,2,2",
"color": "msx-glass",
"titleHeader": "Title Header",
"title": "Title",
"titleFooter": "Title Footer",
"alignment": "left|stamp-left",
"centration": "title"
}, {
"stamp": "Center",
"type": "default",
"layout": "8,0,2,2",
"color": "msx-glass",
"titleHeader": "Title Header",
"title": "Title",
"titleFooter": "Title Footer",
"alignment": "center|stamp-center",
"centration": "title"
}, {
"stamp": "Right",
"type": "default",
"layout": "10,0,2,2",
"color": "msx-glass",
"titleHeader": "Title Header",
"title": "Title",
"titleFooter": "Title Footer",
"alignment": "right|stamp-right",
"centration": "title"
}, {
"badge": "Truncation 1",
"type": "default",
"layout": "0,2,2,4",
"color": "msx-glass",
"titleHeader": "Long Long Long Long Title Header",
"title": "Long Long Long Long Title",
"titleFooter": "Long Long Long Long Title Footer",
"alignment": "badge-center"
}, {
"badge": "Truncation 2",
"type": "default",
"layout": "2,2,2,4",
"color": "msx-glass",
"titleHeader": "Long Long Long Long Title Header",
"title": "Long Long Long Long Title",
"titleFooter": "Long Long Long Long Title Footer",
"alignment": "badge-center",
"truncation": "titleHeader|titleFooter"
}, {
"badge": "Truncation 3",
"type": "default",
"layout": "4,2,2,4",
"color": "msx-glass",
"titleHeader": "Long Long Long Long Title Header",
"title": "Long Long Long Long Title",
"titleFooter": "Long Long Long Long Title Footer",
"alignment": "badge-center",
"truncation": "title|titleHeader|titleFooter"
}, {
"stamp": "Centration 1",
"type": "default",
"layout": "6,2,2,4",
"color": "msx-glass",
"titleHeader": "Long Long Long Long Title Header",
"title": "Long Long Long Long Title",
"titleFooter": "Long Long Long Long Title Footer",
"alignment": "center|badge-center|stamp-center",
"centration": "title"
}, {
"stamp": "Centration 2",
"type": "default",
"layout": "8,2,2,4",
"color": "msx-glass",
"titleHeader": "Long Long Long Long Title Header",
"title": "Long Long Long Long Title",
"titleFooter": "Long Long Long Long Title Footer",
"alignment": "center|badge-center|stamp-center",
"centration": "title",
"truncation": "titleHeader|titleFooter"
}, {
"stamp": "Centration 3",
"type": "default",
"layout": "10,2,2,4",
"color": "msx-glass",
"titleHeader": "Long Long Long Long Title Header",
"title": "Long Long Long Long Title",
"titleFooter": "Long Long Long Long Title Footer",
"alignment": "center|badge-center|stamp-center",
"centration": "title",
"truncation": "title|titleHeader|titleFooter"
}]
}, {
"headline": "Boundaries",
"items": [{
"type": "default",
"layout": "0,0,4,3",
"badge": "Badge",
"tag": "Tag",
"stamp": "Stamp",
"title": "Default Item",
"titleFooter": "Default Boundary",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover"
}, {
"type": "separate",
"layout": "4,0,4,3",
"badge": "Badge",
"tag": "Tag",
"stamp": "Stamp",
"title": "Separate Item",
"titleFooter": "Default Boundary",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover"
}, {
"type": "default",
"layout": "8,0,4,3",
"badge": "Long Long Long Long Badge",
"tag": "Tag",
"stamp": "Long Long Long Long Stamp",
"title": "Wrapped Default Item",
"titleFooter": "{col:msx-green}Item Boundary{br}{br}{br}",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover",
"imageWidth": 1.83,
"wrapperColor": "msx-glass"
}, {
"type": "default",
"layout": "0,3,4,3",
"badge": "Badge",
"tag": "Tag",
"stamp": "Stamp",
"title": "Wrapped Default Item",
"titleFooter": "{col:msx-green}Item Boundary",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover",
"imageHeight": 1.83,
"wrapperColor": "msx-glass"
}, {
"type": "default",
"layout": "4,3,4,3",
"badge": "Badge",
"tag": "Tag",
"stamp": "Stamp",
"title": "Wrapped Default Item",
"titleFooter": "{col:msx-yellow}Image Boundary",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover",
"imageHeight": 1.83,
"imageBoundary": true,
"wrapperColor": "msx-glass"
}, {
"type": "default",
"layout": "8,3,4,3",
"badge": "Long Long Long Long Badge",
"tag": "Tag",
"stamp": "Long Long Long Long Stamp",
"title": "Wrapped Default Item",
"titleFooter": "{col:msx-yellow}Image Boundary",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover",
"imageWidth": 1.83,
"imageBoundary": true,
"wrapperColor": "msx-glass"
}]
}, {
"headline": "Boundaries",
"items": [{
"type": "default",
"layout": "0,0,4,3",
"badge": "Badge",
"tag": "Tag",
"stamp": "00:12:34",
"stampColor": "msx-red",
"progress": 0.5,
"progressColor": "msx-red",
"title": "Default Item With Progress",
"titleFooter": "Default Boundary",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover"
}, {
"type": "separate",
"layout": "4,0,4,3",
"badge": "Badge",
"tag": "Tag",
"stamp": "00:12:34",
"stampColor": "msx-red",
"progress": 0.5,
"progressColor": "msx-red",
"title": "Separate Item With Progress",
"titleFooter": "Default Boundary",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover"
}, {
"type": "default",
"layout": "8,0,4,3",
"badge": "Badge",
"tag": "Tag",
"stamp": "00:12:34",
"stampColor": "msx-red",
"progress": 0.5,
"progressColor": "msx-red",
"title": "Wrapped Default Item With Progress",
"titleFooter": "{col:msx-green}Item Boundary{br}{br}{br}",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover",
"imageWidth": 1.83,
"wrapperColor": "msx-glass"
}, {
"type": "default",
"layout": "0,3,4,3",
"badge": "Badge",
"tag": "Tag",
"stamp": "00:12:34",
"stampColor": "msx-red",
"progress": 0.5,
"progressColor": "msx-red",
"title": "Wrapped Default Item With Progress",
"titleFooter": "{col:msx-green}Item Boundary",
"truncation": "title",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover",
"imageHeight": 1.83,
"wrapperColor": "msx-glass"
}, {
"type": "default",
"layout": "4,3,4,3",
"badge": "Badge",
"tag": "Tag",
"stamp": "00:12:34",
"stampColor": "msx-red",
"progress": 0.5,
"progressColor": "msx-red",
"title": "Wrapped Default Item With Progress",
"titleFooter": "{col:msx-yellow}Image Boundary",
"truncation": "title",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover",
"imageHeight": 1.83,
"imageBoundary": true,
"wrapperColor": "msx-glass"
}, {
"type": "default",
"layout": "8,3,4,3",
"badge": "Badge",
"tag": "Tag",
"stamp": "00:12:34",
"stampColor": "msx-red",
"progress": 0.5,
"progressColor": "msx-red",
"title": "Wrapped Default Item With Progress",
"titleFooter": "{col:msx-yellow}Image Boundary",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover",
"imageWidth": 1.83,
"imageBoundary": true,
"wrapperColor": "msx-glass"
}]
}, {
"headline": "Separations (0.1.156+)",
"items": [{
"tag": "0.25",
"separation": 0.25,
"type": "control",
"layout": "0,0,6,1",
"label": "Label label label label label label label label label label label",
"extensionLabel": "Extension extension extension extension extension extension extension"
}, {
"tag": "0.25",
"separation": 0.25,
"type": "control",
"layout": "6,0,6,1",
"icon": "adb",
"label": "Label label label label label label label label label label label",
"extensionLabel": "Extension extension extension extension extension extension extension"
}, {
"tag": "0.5",
"separation": 0.5,
"type": "control",
"layout": "0,1,6,1",
"label": "Label label label label label label label label label label label",
"extensionLabel": "Extension extension extension extension extension extension extension"
}, {
"tag": "0.5",
"separation": 0.5,
"type": "control",
"layout": "6,1,6,1",
"icon": "adb",
"label": "Label label label label label label label label label label label",
"extensionLabel": "Extension extension extension extension extension extension extension"
}, {
"tag": "0.75",
"separation": 0.75,
"type": "control",
"layout": "0,2,6,1",
"label": "Label label label label label label label label label label label",
"extensionLabel": "Extension extension extension extension extension extension extension"
}, {
"tag": "0.75",
"separation": 0.75,
"type": "control",
"layout": "6,2,6,1",
"icon": "adb",
"label": "Label label label label label label label label label label label",
"extensionLabel": "Extension extension extension extension extension extension extension"
}, {
"tag": "0.5",
"separation": 0.5,
"type": "default",
"layout": "0,3,6,3",
"alignment": "center|separation-text-right",
"centration": "text|title",
"headline": "Headline headline headline",
"text": "Text text text text text text text text text text text text text",
"title": "Title title title",
"titleHeader": "Header header header header header header header header",
"titleFooter": "Footer footer footer footer footer footer footer footer"
}, {
"tag": "0.9",
"separation": 0.9,
"type": "default",
"layout": "6,3,6,1",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover",
"imageWidth": 2,
"truncation": "titleHeader|titleFooter",
"titleHeader": "Header header header header header header header header",
"titleFooter": "Footer footer footer footer footer footer footer footer"
}, {
"tag": "0.75",
"separation": 0.75,
"type": "default",
"layout": "6,4,6,1",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "height-right",
"imageOverlay": 0,
"truncation": "titleHeader|titleFooter",
"titleHeader": "Header header header header header header header header",
"titleFooter": "Footer footer footer footer footer footer footer footer"
}, {
"tag": "0.5",
"separation": 0.5,
"type": "default",
"layout": "6,5,6,1",
"image": "http://msx.benzac.de/img/test.jpg",
"imageFiller": "cover",
"imageWidth": 2,
"alignment": "separation-text-right",
"centration": "text",
"truncation": "titleHeader|titleFooter",
"titleHeader": "Header header header header header header header header",
"titleFooter": "Footer footer footer footer footer footer footer footer",
"headline": "{ico:msx-yellow:star} {ico:msx-yellow:star} {ico:msx-yellow:star} {ico:msx-yellow:star} {ico:msx-yellow:star}"
}]
}]
}
