It is possible to convert numbers (indicated in milliseconds) with inline expressions into date, time, or duration values. The expressions are similar to the Live Inline Expressions and look like this: {num:{NUMBER}:{TYPE}:{FORMAT}}. It is also possible to add colored values with the expression syntax {txt:{COLOR}:num:{NUMBER}:{TYPE}:{FORMAT}}. Please see Colors for possible color values. This feature is available since version 0.1.91. Since version 0.1.160, a number can also be basically formatted by using the syntax {num:{NUMBER}:format} or {num:{NUMBER}:format:{FORMAT}}. In the first case, the number format is taken from the dictionary. Please see #Basic Number Format Expressions for examples.

Basic Number Format Expressions[edit]

Expression syntax of basic number format expressions
Expression Example Output Since Version

{num:{NUMBER}:format}

{num:123:format}
{num:1234:format}
{num:12345.12345:format}

123
1,234
12,345.12345

 0.1.160

{num:{NUMBER}:format:{DECIMAL_DIGITS}}
{num:{NUMBER}:format:{DECIMAL_DIGITS}{DECIMAL_TRIMMING}}

{num:123:format:0}
{num:123:format:1}
{num:123:format:2}
{num:123:format:02}
{num:123:format:12}
{num:123:format:21}

{num:1234.1:format:0}
{num:1234.1:format:1}
{num:1234.1:format:3}
{num:1234.1:format:03}
{num:1234.1:format:23}
{num:1234.1:format:32}

{num:12345.12345:format:0}
{num:12345.12345:format:1}
{num:12345.12345:format:4}
{num:12345.12345:format:04}
{num:12345.12345:format:24}
{num:12345.12345:format:42}

123
123.0
123.00
123
123.0
123.00

1,234
1,234.1
1,234.100
1,234.1
1,234.10
1,234.100

12,345
12,345.1
12,345.1234
12,345.1234
12,345.1234
12,345.1200

 0.1.160

{num:{NUMBER}:format:{THOUSANDS_SEPARATOR}}
{num:{NUMBER}:format:{THOUSANDS_SEPARATOR}{DECIMAL_SEPARATOR}}
{num:{NUMBER}:format:{THOUSANDS_SEPARATOR}{DECIMAL_SEPARATOR}{DECIMAL_DIGITS}}
{num:{NUMBER}:format:{THOUSANDS_SEPARATOR}{DECIMAL_SEPARATOR}{DECIMAL_DIGITS}{DECIMAL_TRIMMING}}

{num:12345.12345:format:.,}
{num:12345.12345:format: .}
{num:12345.12345:format: ,}
{num:12345.12345:format:.,0}
{num:12345.12345:format: .1}
{num:12345.12345:format: ,24}

12.345,12345
12 345.12345
12 345,12345
12.345
12 345.1
12 345,1234

 0.1.160

Example[edit]

Screenshot[edit]

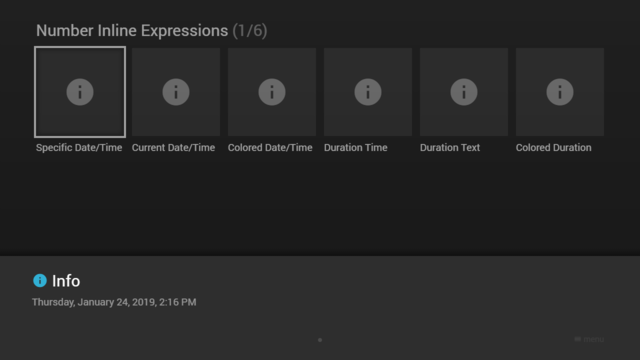

Example Screenshot (Number Inline Expressions)

Code[edit]

{
    "type": "pages",
    "headline": "Number Inline Expressions",
    "template": {
        "type": "separate",
        "layout": "0,0,2,3",
        "icon": "msx-white-soft:info",
        "color": "msx-glass"
    },
    "items": [{
            "title": "Specific Date/Time",
            "action": "info:{num:1548335764000:date:DD, MM d, yyyy}, {num:1548335764000:time:h:mm/ampm}"
        }, {
            "title": "Current Date/Time",
            "action": "info:{num:now:date:DD, MM d, yyyy}, {num:now:time:h:mm/ampm}"
        }, {
            "title": "Colored Date/Time",
            "action": "info:{txt:msx-blue:num:1548335764000:date:DD, MM d, yyyy}, {txt:msx-blue:num:1548335764000:time:h:mm/ampm}"
        }, {
            "title": "Duration Time",
            "action": "info:{num:5640000:duration:time:hh:mm:ss}"
        }, {
            "title": "Duration Text",
            "action": "info:{num:5640000:duration:text:dhms}"
        }, {
            "title": "Colored Duration",
            "action": "info:{txt:msx-blue:num:5640000:duration:text:dhms}"
        }, {
            "badge": "Formatter",
            "title": "Specific Date/Time",
            "titleFooter": "0.1.160+",
            "action": "info:{num:1548335764000:formatter:day_full}"
        }, {
            "badge": "Formatter",
            "title": "Current Date/Time",
            "titleFooter": "0.1.160+",
            "action": "info:{num:now:formatter:day_full}"
        }, {
            "badge": "Formatter",
            "title": "Colored Date/Time",
            "titleFooter": "0.1.160+",
            "action": "info:{txt:msx-blue:num:1548335764000:formatter:day_full}"
        }, {
            "badge": "Format",
            "title": "Default Number",
            "titleFooter": "0.1.160+",
            "action": "info:{num:12345.12345:format}"
        }, {
            "badge": "Format",
            "title": "Rounded Number",
            "titleFooter": "0.1.160+",
            "action": "info:{num:12345.12345:format:0}"
        }, {
            "badge": "Format",
            "title": "Colored Number",
            "titleFooter": "0.1.160+",
            "action": "info:{txt:msx-blue:num:12345.12345:format: ,24}"
        }]
}

Demo[edit]
