Background Plugin

This is a special video plugin that plays a video in an endless loop. The plugin can be used with version 0.1.74 or higher.

Usage

The plugin can be loaded with a video URL or ID. If a video ID is used, the interaction plugin is used to request the corresponding URL. Please see following action syntax examples.

• video:plugin:http://msx.benzac.de/plugins/background.html?url={URL}
• video:plugin:http://msx.benzac.de/plugins/background.html?id={ID}

If you would like to use the plugin with Google Drive MSX, OneDrive MSX, or Dropbox MSX, please use the index.json file feature and reference all video files with the inline expression {asset:id:{NAME}} (e.g. {asset:id:video1.mp4}). For more information, please see Credits & Hints from the corresponding service.

Note: For Google Drive MSX, all referenced files must be publicly shared and smaller than 100 MB.

If you would like to use the plugin as reference to implement your own plugin, please have a look at this implementation script: http://msx.benzac.de/plugins/js/background.js.

Syntax

Parameter syntax of background plugin

Parameter	Type	Default Value	Mandatory	Description
id	string	null	No	The ID of the background video. This ID is used to request the corresponding URL from the interaction plugin.
url	string	null	Only if video ID is not set	The URL of the background video. It is recommended to encode the value to ensure that it is evaluated correctly (e.g. "http://msx.benzac.de/media/atmos1.mp4" → "http%3A%2F%2Fmsx.benzac.de%2Fmedia%2Fatmos1.mp4").

Example

Please note that this example uses some properties that are only available in version 0.1.142 or higher. Please also note that the service http://msx.benzac.de/services/background.php is not part of the plugin. It is just a helper service to return a background video plugin action if no other video/audio is running.

Screenshot

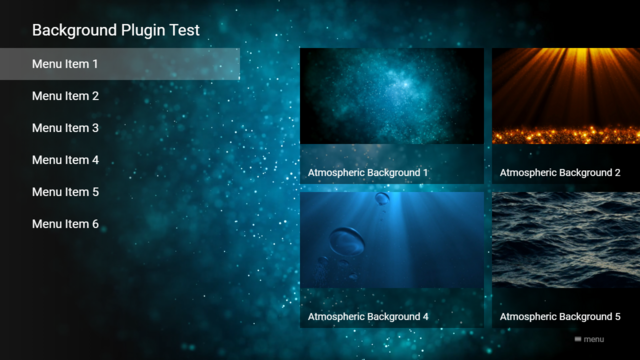

Example Screenshot (Background Plugin)

Code

{
    "headline": "Background Plugin Test",
    "style": "overlay",
    "transparent": 2,
    "ready": {
        "action": "execute:service:video:data:http://msx.benzac.de/services/background.php",
        "data": {
            "url": "http://msx.benzac.de/media/atmos1.mp4",
            "label": "Atmospheric Background 1",
            "transparent": true
        }
    },
    "menu": [{
            "label": "Menu Item 1",
            "data": "http://msx.benzac.de/info/xp/data/plugin_test_6_content.json"
        }, {
            "label": "Menu Item 2",
            "data": "http://msx.benzac.de/info/xp/data/plugin_test_6_content.json"
        }, {
            "label": "Menu Item 3",
            "data": "http://msx.benzac.de/info/xp/data/plugin_test_6_content.json"
        }, {
            "label": "Menu Item 4",
            "data": "http://msx.benzac.de/info/xp/data/plugin_test_6_content.json"
        }, {
            "label": "Menu Item 5",
            "data": "http://msx.benzac.de/info/xp/data/plugin_test_6_content.json"
        }, {
            "label": "Menu Item 6",
            "data": "http://msx.benzac.de/info/xp/data/plugin_test_6_content.json"
        }]
}

Demo

• Launch via App: https://msx.benzac.de/?start=menu:https://msx.benzac.de/info/xp/data/plugin_test_6_menu.json
• Launch via Demo Page: https://msx.benzac.de/info/?start=menu:https://msx.benzac.de/info/xp/data/plugin_test_6_menu.json
