This is not really a hidden feature, but a good-to-know information. It is possible to stretch an image to the entire screen size by using large offsets. This feature is available since version 0.1.110. Please see following example.
Example[edit]

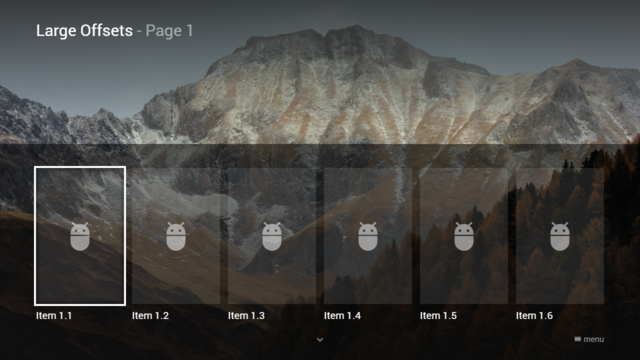

Screenshot[edit]
Code[edit]
{
"type": "list",
"headline": "Large Offsets",
"pages": [{
"headline": "Page 1",
"offset": "0,0,0,1.5",
"items": [{
"type": "space",
"layout": "0,0,12,6",
"offset": "-0.75,-1,1.5,1.67",
"color": "msx-glass",
"image": "http://msx.benzac.de/img/bg1.jpg",
"imageOverlay": 4,
"round": false
}, {
"type": "space",
"layout": "0,1,12,4",
"offset": "-0.75,1,1.5,0.67",
"color": "msx-black-soft",
"round": false
}, {
"type": "separate",
"layout": "0,2,2,4",
"offset": "0,0.5,0,0",
"icon": "msx-white-soft:adb",
"color": "msx-glass",
"title": "Item 1.1"
}, {
"type": "separate",
"layout": "2,2,2,4",
"offset": "0,0.5,0,0",
"icon": "msx-white-soft:adb",
"color": "msx-glass",
"title": "Item 1.2"
}, {
"type": "separate",
"layout": "4,2,2,4",
"offset": "0,0.5,0,0",
"icon": "msx-white-soft:adb",
"color": "msx-glass",
"title": "Item 1.3"
}, {
"type": "separate",
"layout": "6,2,2,4",
"offset": "0,0.5,0,0",
"icon": "msx-white-soft:adb",
"color": "msx-glass",
"title": "Item 1.4"
}, {
"type": "separate",
"layout": "8,2,2,4",
"offset": "0,0.5,0,0",
"icon": "msx-white-soft:adb",
"color": "msx-glass",
"title": "Item 1.5"
}, {
"type": "separate",
"layout": "10,2,2,4",
"offset": "0,0.5,0,0",
"icon": "msx-white-soft:adb",
"color": "msx-glass",
"title": "Item 1.6"
}]
}, {
"headline": "Page 2",
"offset": "0,0,0,1.5",
"items": [{
"type": "space",
"layout": "0,0,12,6",
"offset": "-0.75,-1,1.5,1.67",
"color": "msx-glass",
"image": "http://msx.benzac.de/img/bg2.jpg",
"imageOverlay": 4,
"round": false
}, {
"type": "space",
"layout": "0,1,12,4",
"offset": "-0.75,1,1.5,0.67",
"color": "msx-black-soft",
"round": false
}, {
"type": "separate",
"layout": "0,2,2,4",
"offset": "0,0.5,0,0",
"icon": "msx-white-soft:adb",
"color": "msx-glass",
"title": "Item 2.1"
}, {
"type": "separate",
"layout": "2,2,2,4",
"offset": "0,0.5,0,0",
"icon": "msx-white-soft:adb",
"color": "msx-glass",
"title": "Item 2.2"
}, {
"type": "separate",
"layout": "4,2,2,4",
"offset": "0,0.5,0,0",
"icon": "msx-white-soft:adb",
"color": "msx-glass",
"title": "Item 2.3"
}, {
"type": "separate",
"layout": "6,2,2,4",
"offset": "0,0.5,0,0",
"icon": "msx-white-soft:adb",
"color": "msx-glass",
"title": "Item 2.4"
}, {
"type": "separate",
"layout": "8,2,2,4",
"offset": "0,0.5,0,0",
"icon": "msx-white-soft:adb",
"color": "msx-glass",
"title": "Item 2.5"
}, {
"type": "separate",
"layout": "10,2,2,4",
"offset": "0,0.5,0,0",
"icon": "msx-white-soft:adb",
"color": "msx-glass",
"title": "Item 2.6"
}]
}]
}
