This is a special interaction plugin that allows you to integrate paging into templated content items (i.e. a Content Root Object that uses the template and items properties). In order to use this plugin, a corresponding content service must be implemented that processes the requested items (i.e. by evaluating the offset and limit parameters). The plugin can be used with version 0.1.82 or higher.


The plugin must be loaded with a content service URL that is able to evaluate the offset and limit parameters. Optionally, the requested limit can be indicated (by default, it is set to 20). Please see following action syntax examples.

The content service URL should contain the keywords {OFFSET} and {LIMIT}, which are replaced with the corresponding values. Please see following action syntax examples.

If you would like to use the plugin as reference to implement your own plugin, please have a look at this implementation script:

Note: Currently, the paging plugin cannot be used with panels.


Parameter syntax of content service for paging plugin
Keyword Parameter Type Default Value Mandatory Description
{ID} id string null No

An automatically generated unique device ID.

{OFFSET} offset number 0 Yes

The offset that specifies from which offset the items should start.

Note: The initial request from the paging plugin will always have the offset 0. If an offset greater than 0 is requested, the content service only needs to return the items property, because the other properties are inherited from the initial request.

{LIMIT} limit number 20 Yes

The limit that specifies how many items should be returned.

Note: If the content service returns less or more items then indicated, no additional items will be requested.

credentials credentials void n/a No

A keyword that indicates that user credentials (e.g. cookies, authorization headers, etc.) are enabled for content service requests. Technically, this keyword sets the withCredentials flag for the XMLHttpRequest object to true. If the content service uses HTTP sessions and manages them via cookies, you should add this keyword.

Note: The parameter column shows the recommended parameter names. Generally, each keyword can be set to any parameter name or integrated into the path of the content service URL.

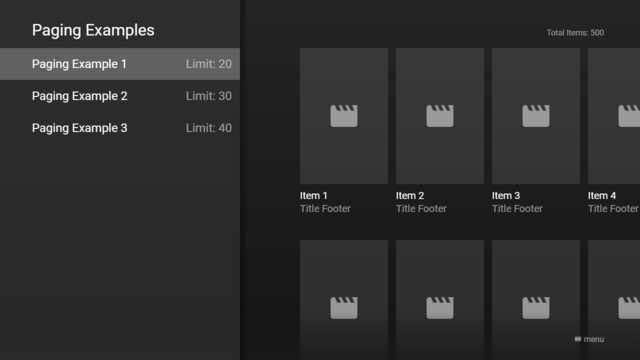

Example Screenshot (Paging Plugin)


    "headline": "Paging Examples",
    "menu": [{
            "label": "Paging Example 1",
            "extensionLabel": "Limit: 20",
            "data": "request:interaction:{OFFSET}&limit={LIMIT}|20@"
        }, {
            "label": "Paging Example 2",
            "extensionLabel": "Limit: 30",
            "data": "request:interaction:{OFFSET}&limit={LIMIT}|30@"
        }, {
            "label": "Paging Example 3",
            "extensionLabel": "Limit: 40",
            "data": "request:interaction:{OFFSET}&limit={LIMIT}|40@"
